Raspberry Pi Universal Case DIY Kit, RPi 3 B+ Protective Acrylic Case/Geekworm Enclosure for Raspberry Pi 3 Model B+, 3B, 2B, B+ and Raspberry pi Hat Expansion Board | Pi 5/4B/3B+/3B/2B/B+ and Pi HAT Expansion Board Compatible

Product Highlights

• manufacturer: Generic
• Item Trademark: GENERIC
• material: Acrylic

Product Description

Product description

[Overview]

It is a perfect acrylic case DIY kit to install raspberry pi hat expansion board with Raspberry Pi 4 Model B/ Raspberry Pi 3 Model B plus / Pi 3 Model B+/ Pi3 Model B / 2B / B+ mother board together.

This is a Protection solution for non-standard boards running boards on top of the raspberry pi, but Please note, this case only compatible with those board which are fitted with the raspberry pi hat, and please check the size of the case carefully to make sure that it will meet your need.

[Note]

The raspberry pi or the expansion board is not included

This case is Raspberry Pi HAT size, so you can use it on any board compatible with HAT size, the only things you need to think is the height of copper space; It is recommend that you can use this case with our 124 pieces/lot M2.5 standoff+screw+nuts kit to meet your needs;(for the M2.5 kit, please refer to B07MN2GY6Y.)

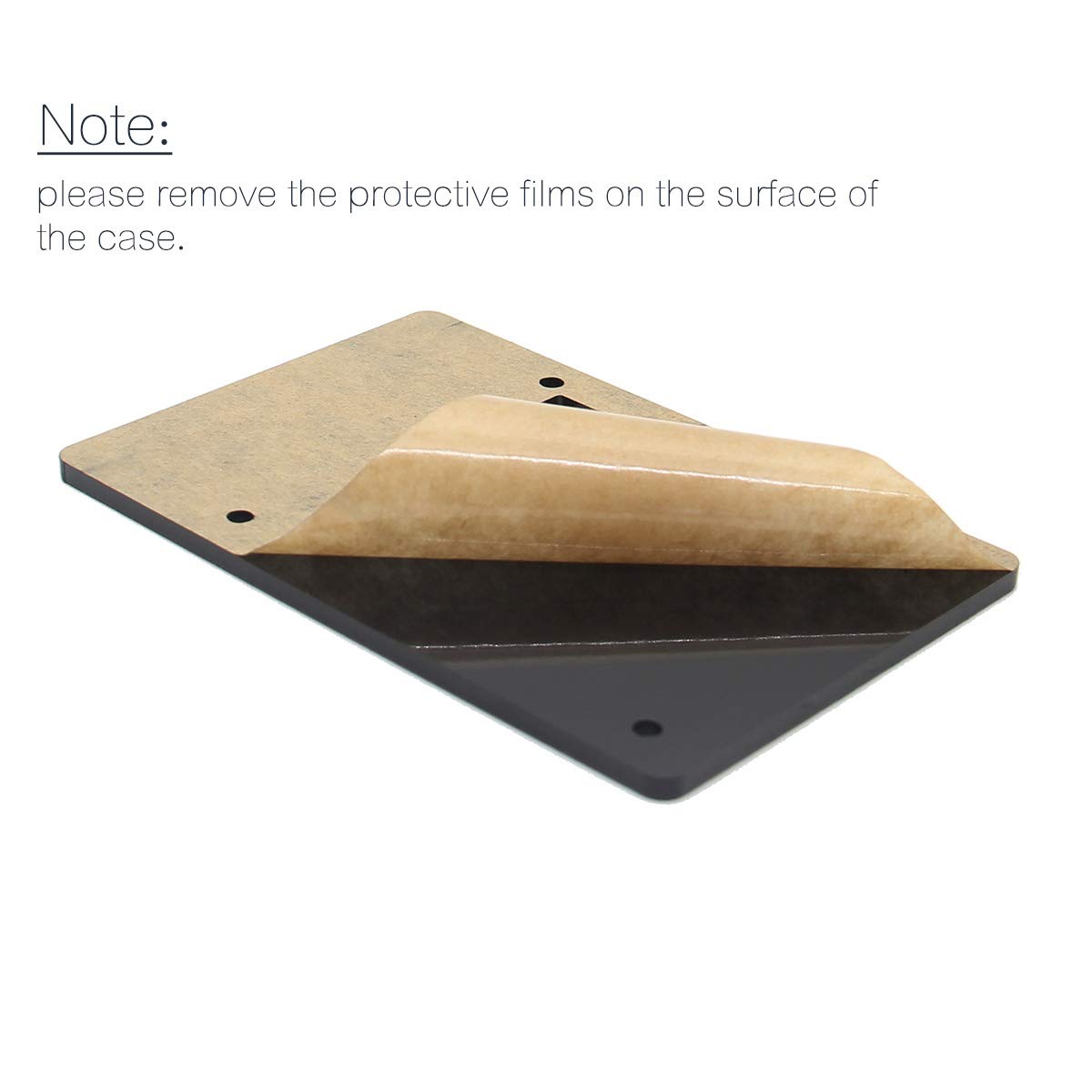

Please REMOVE the PROTECTIVE FILM from both sides of the pieces.

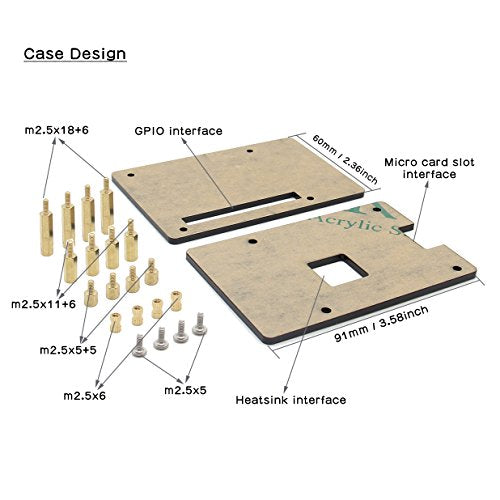

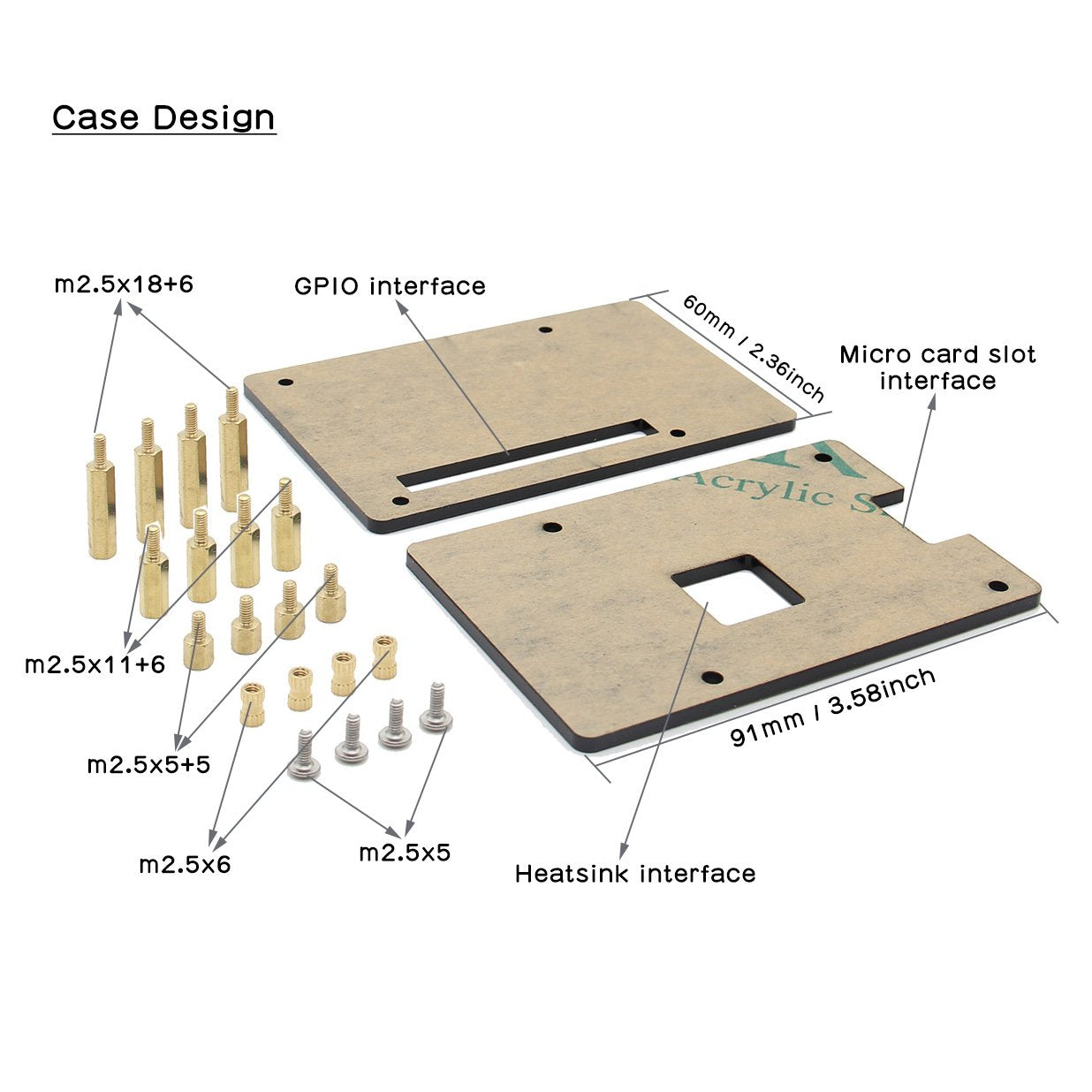

The two pcs acrylic plates thickness is 2.5mm.

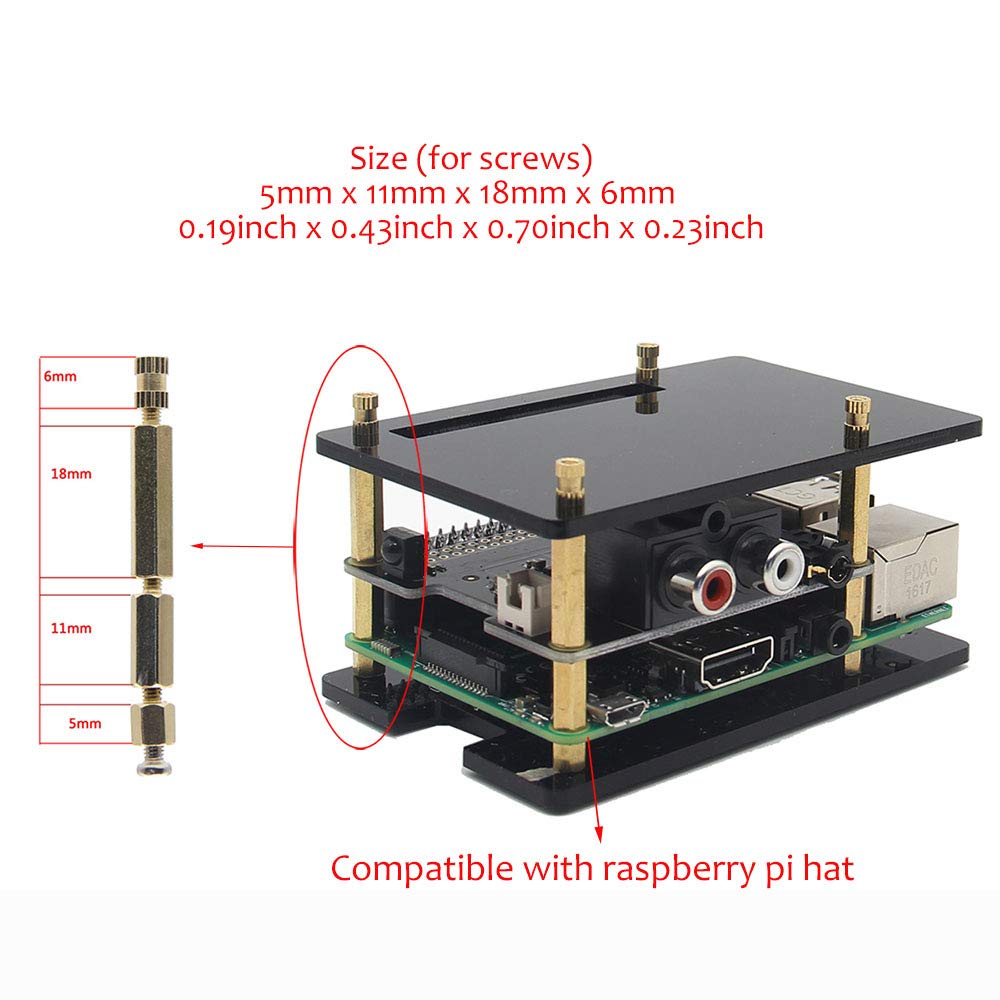

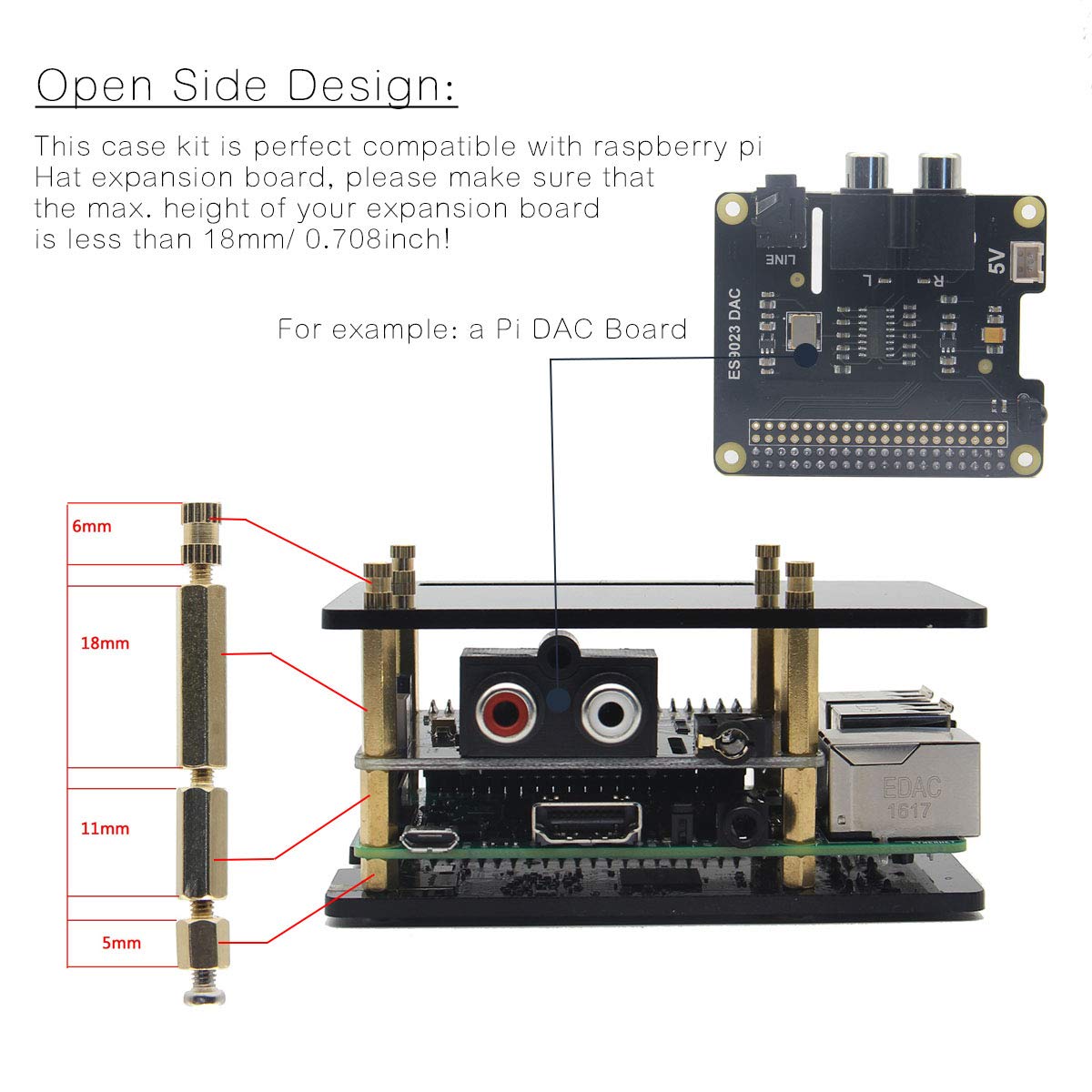

[Installation Guide](X900 DAC Board as a example)

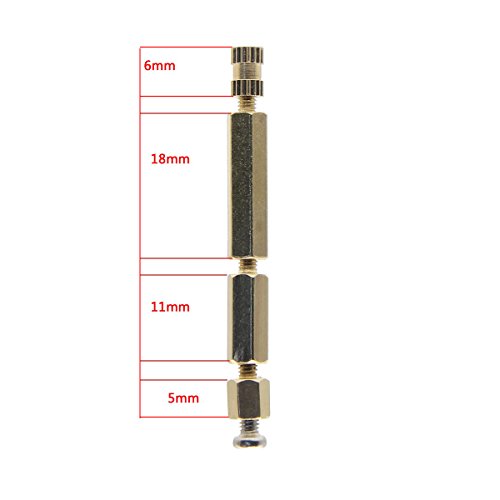

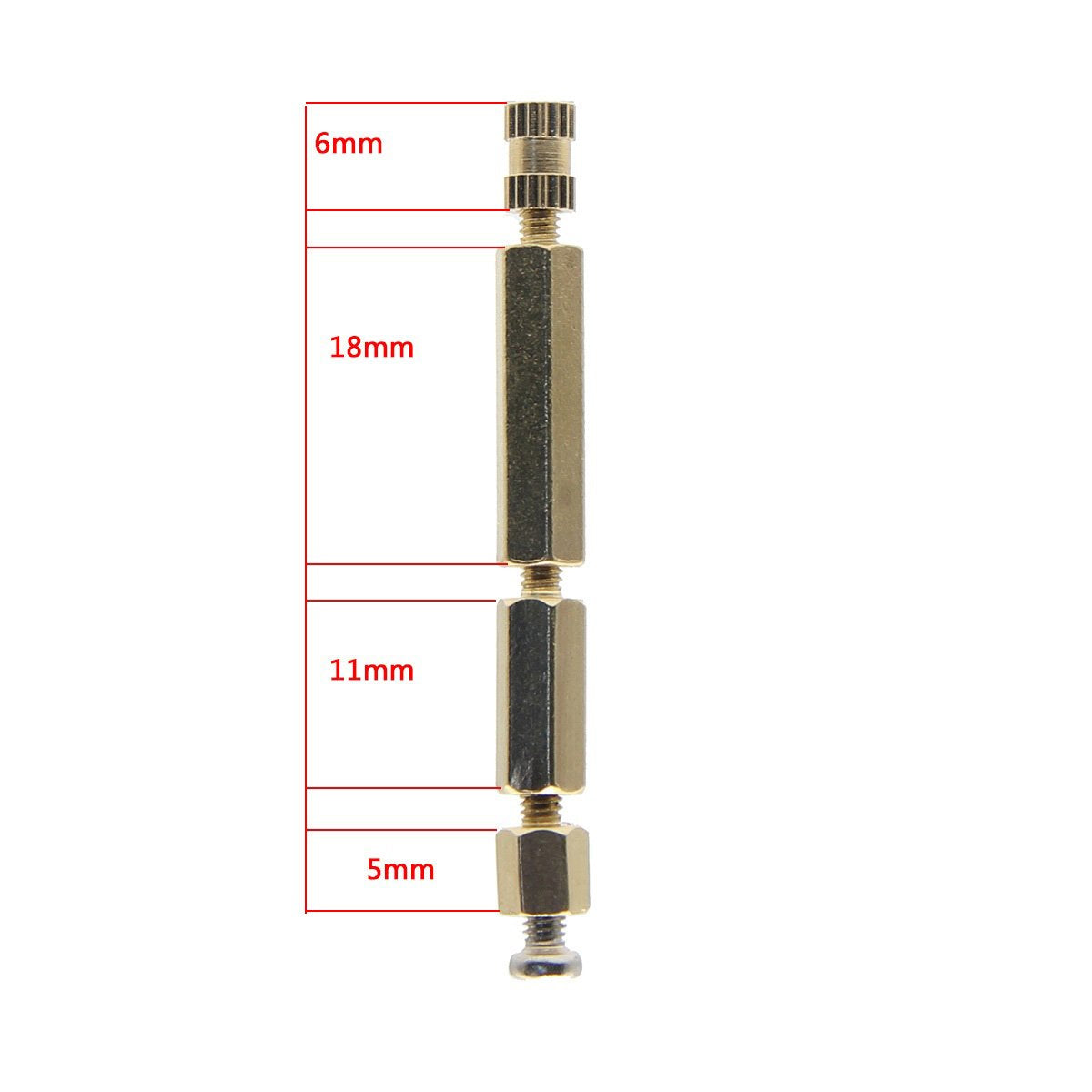

1/ Mount the bottom shell to the Raspberry Pi Motherboard with 5mm screws

2/ Install the 11mm Screws on the Raspberry pi board(as the picture show)

3/ Install the Expansion board

4/ Install the 18mm screws on the expansion board(as the picture show)

5/ Finally, Install the top shell with 6mm screws (as the picture show)

[Packing List]

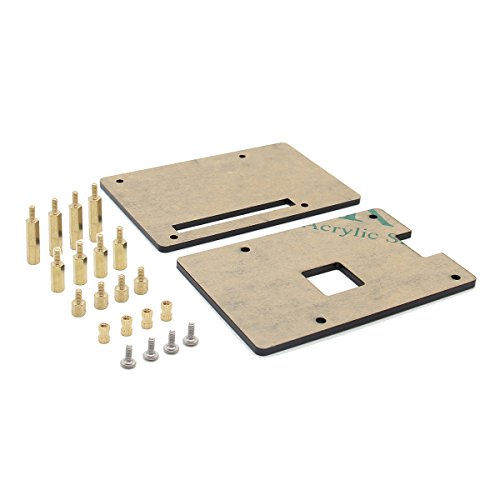

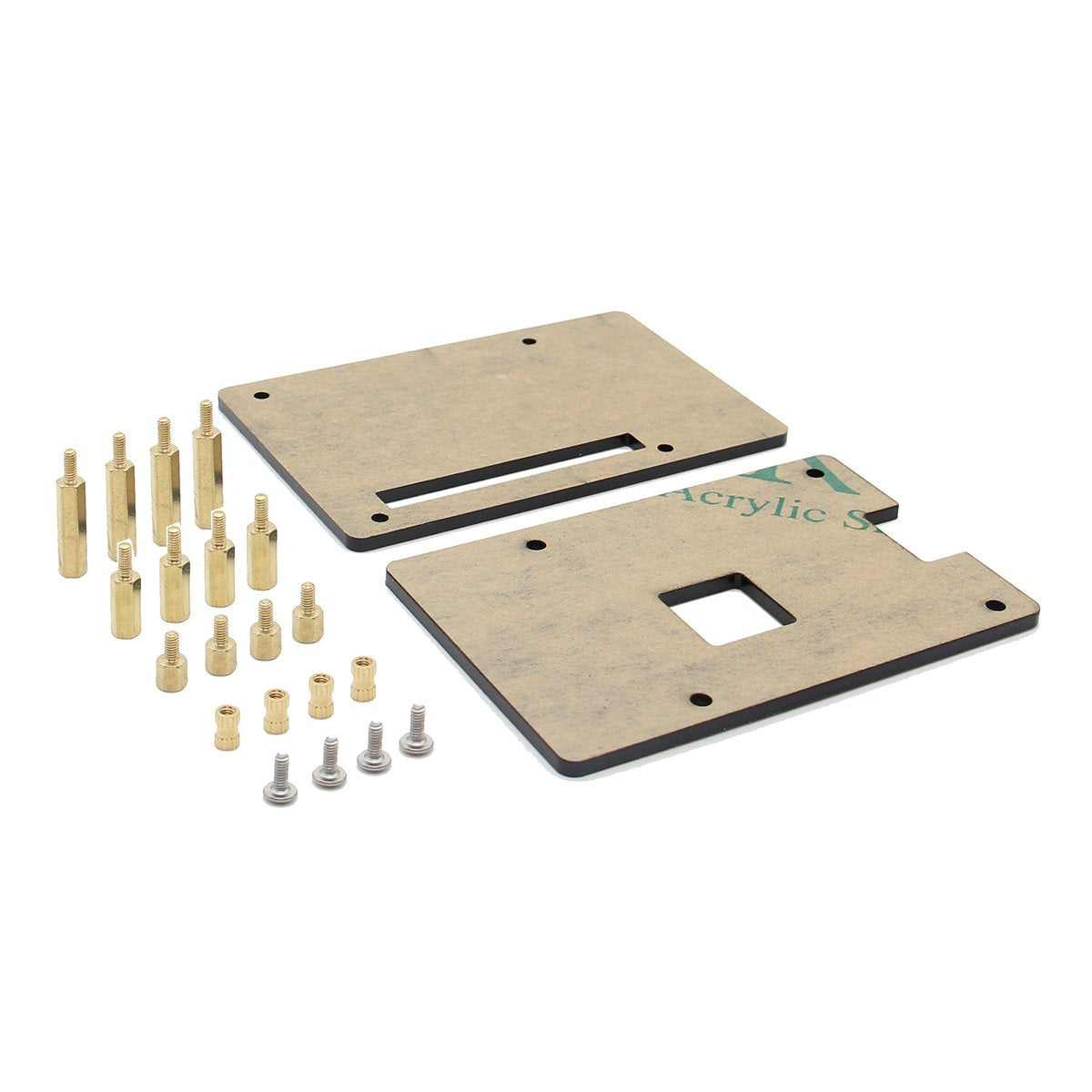

1 x Raspberry Pi Hat Acrylic Case

1 x Pack of Screws

[Application]

For Example

This HAT size acrylic case is ok to install the Raspberry Pi 4 Model B and X700 18650 UPS HAT and power management board like in the photo on the left.
