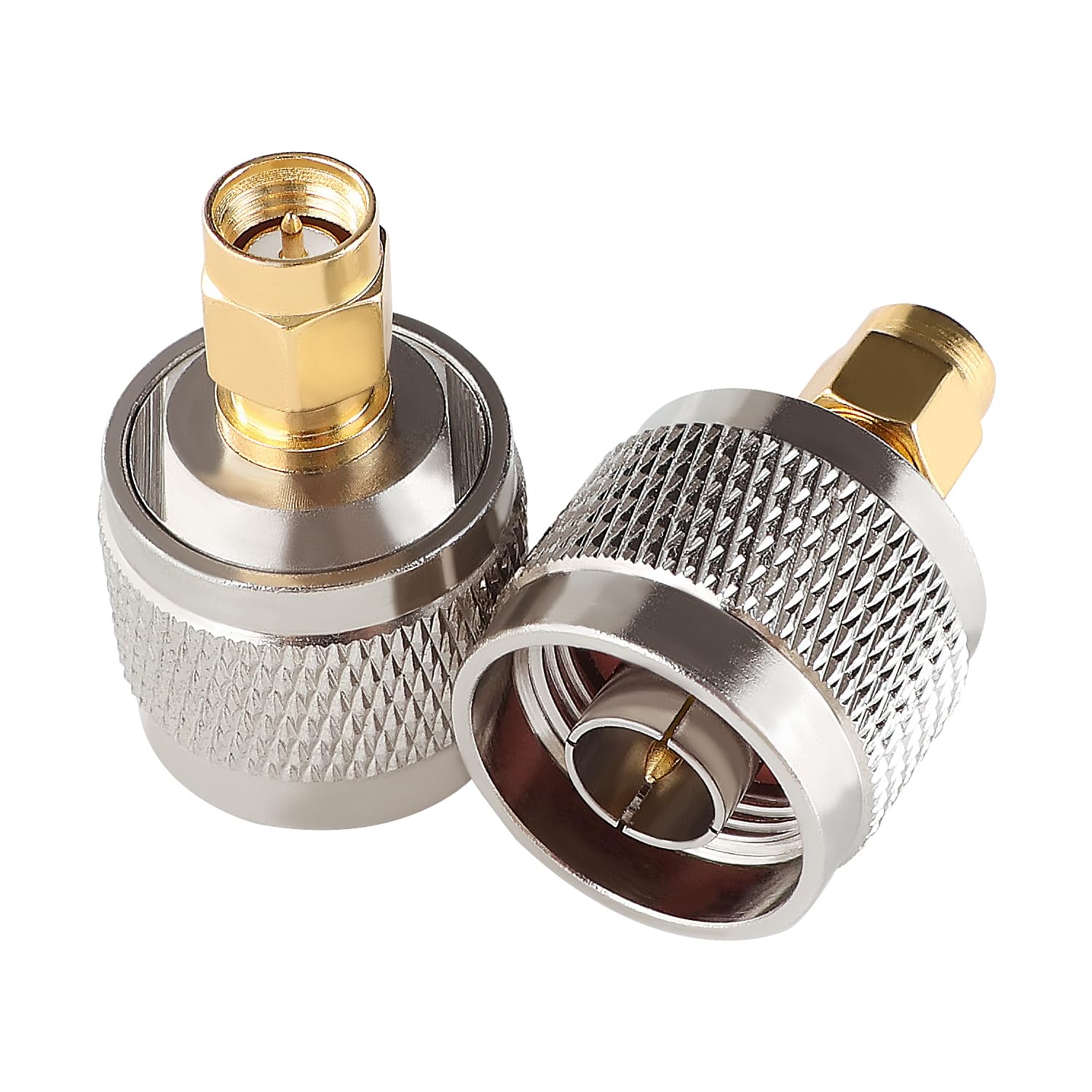

2 Pieces Copper N-type to RP-SMA Adapter, N Type Male to RP-SMA Male Coaxial Connector for WiFi Antenna Broadcast Radio

Product Highlights

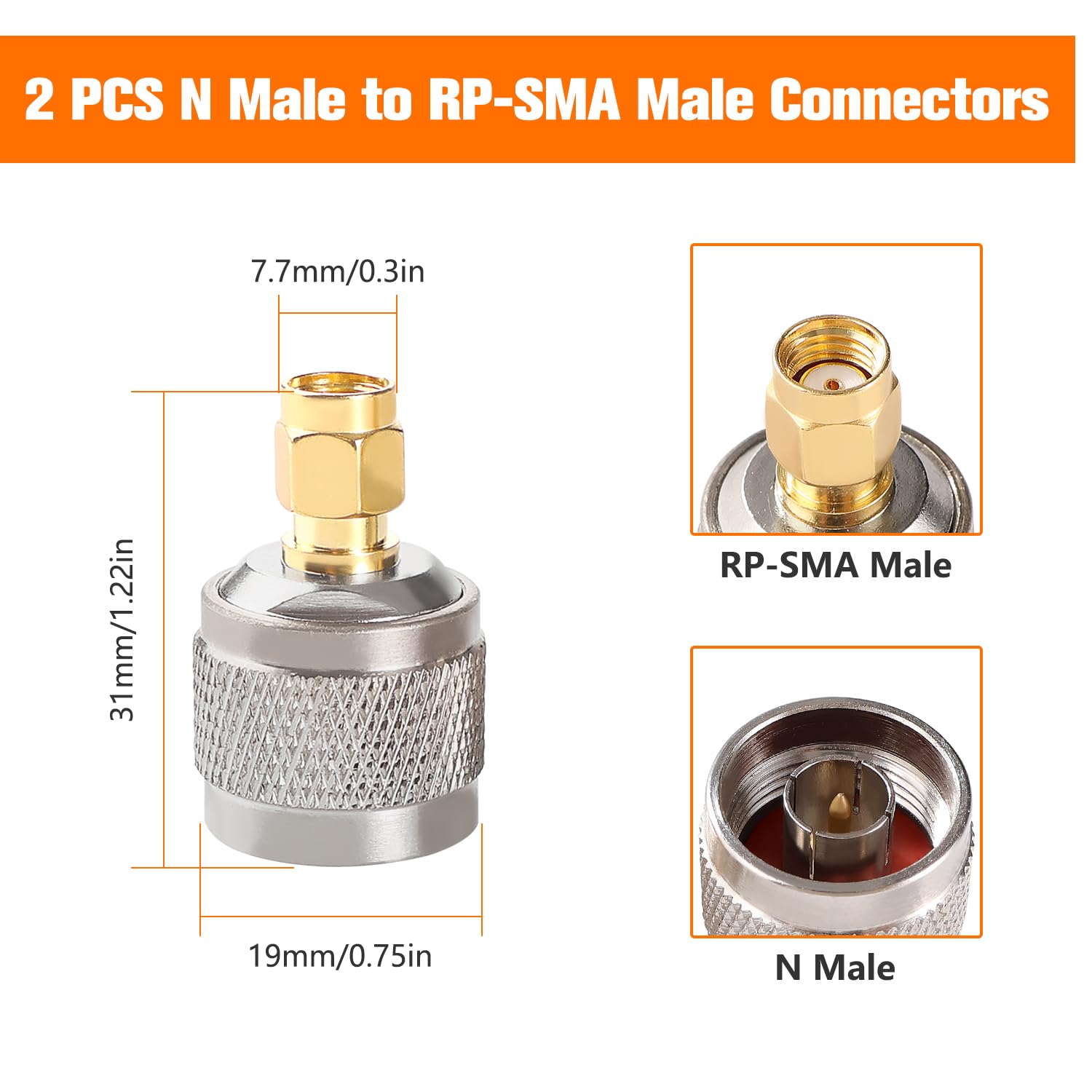

• Package Includes:2pcs N Male to RP-SMA Male Connector
• High Quality Material:Made of copper, less signal loss, higher transmission speed, durable and long lasting.
• Durability and performance: Impedance: 50ohm, low loss, temperature range: -65-+165°C, high quality adapters ensure low loss in signal transmission and good conductivity.
• EASY INSTALLATION No tools are needed for installation. The threaded connection ensures a secure and firm connection between the cable and the device.
• Wide Applications Widely used for FPV antennas, extension cables, wifi radios, radio transceivers, video, telecommunication, antennas, broadcasting and so on.

Product Description

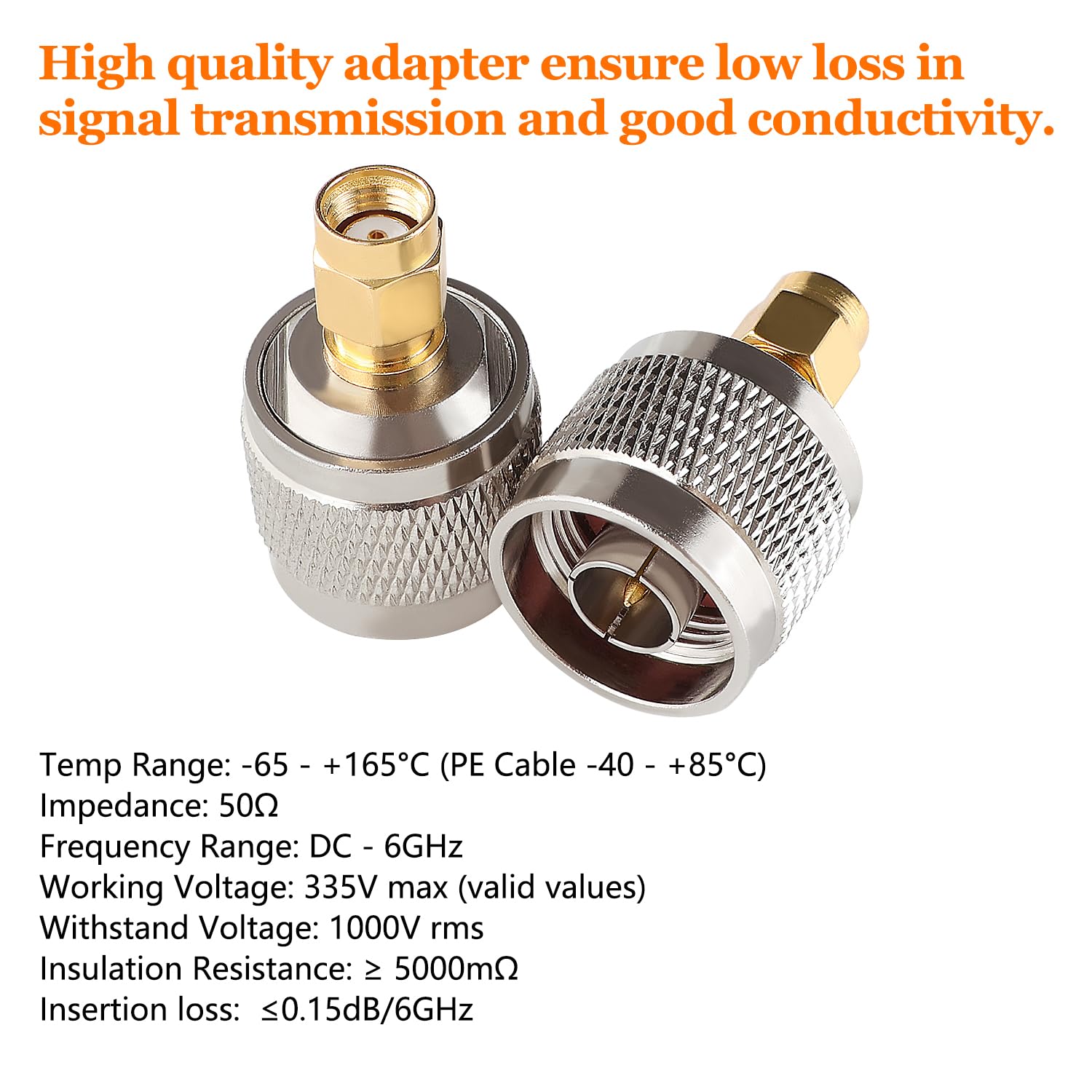

Specifications:

Materials: Copper

Colour: silver, gold.

Temperature range: -65 to +165 °C (PE cable -40 - +85 °C).

Impedance: 50Ω.

Frequency range: DC - 6GHz.

Operating voltage: max. 335 V (valid values).

Dielectric strength: 1000V rms

Insulation resistance: ≥ 5000 mΩ.

Insertion loss: ≤0.15 dB/6 GHz.

Box contents:

2 x N Male to RP-SMA Male Connector
