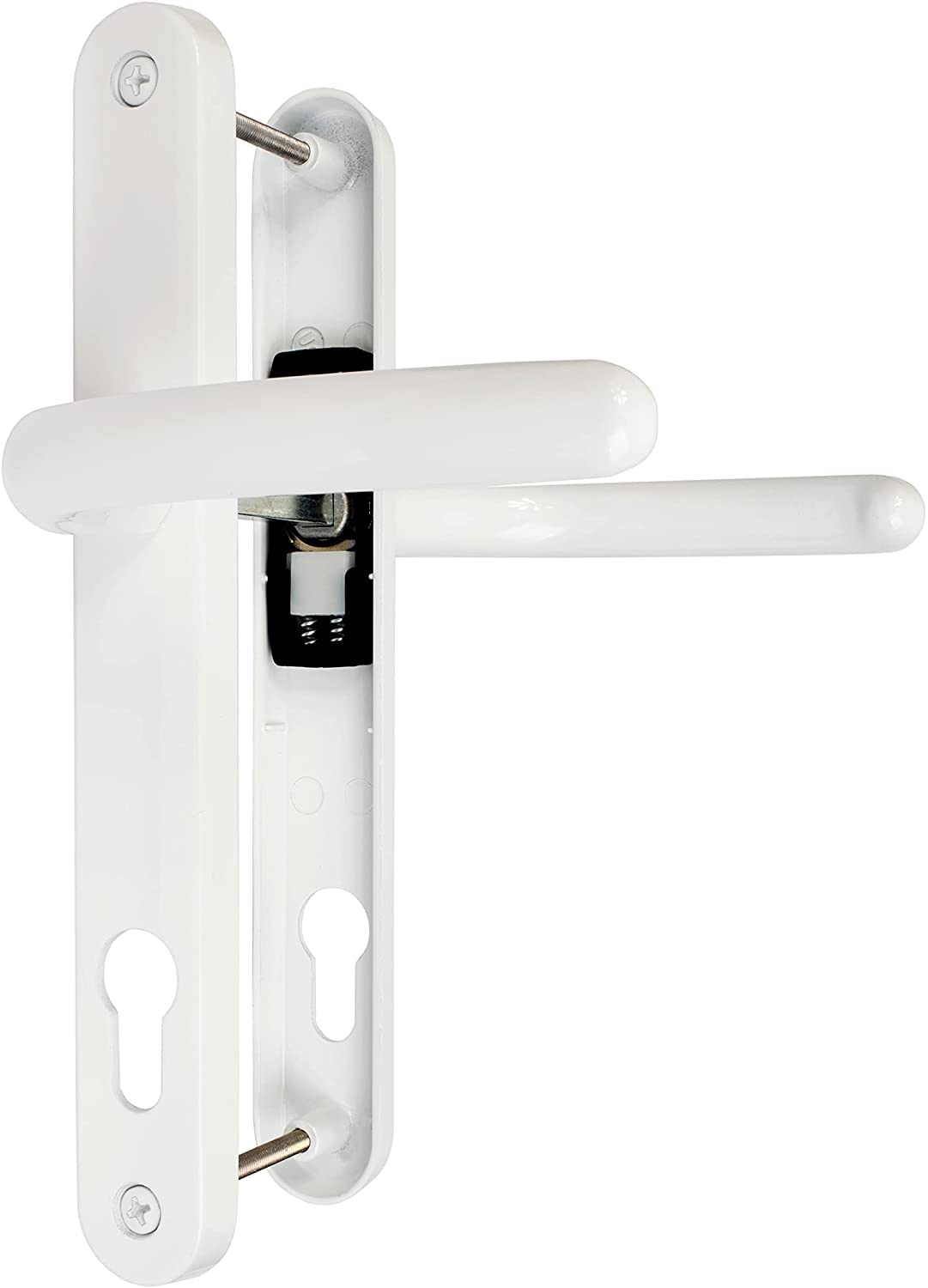

Fab & Fix uPVC Door Handles Set Lever/Lever White 92pz - 210mm Screw to Screw - Back Plate 240mm

Product Highlights

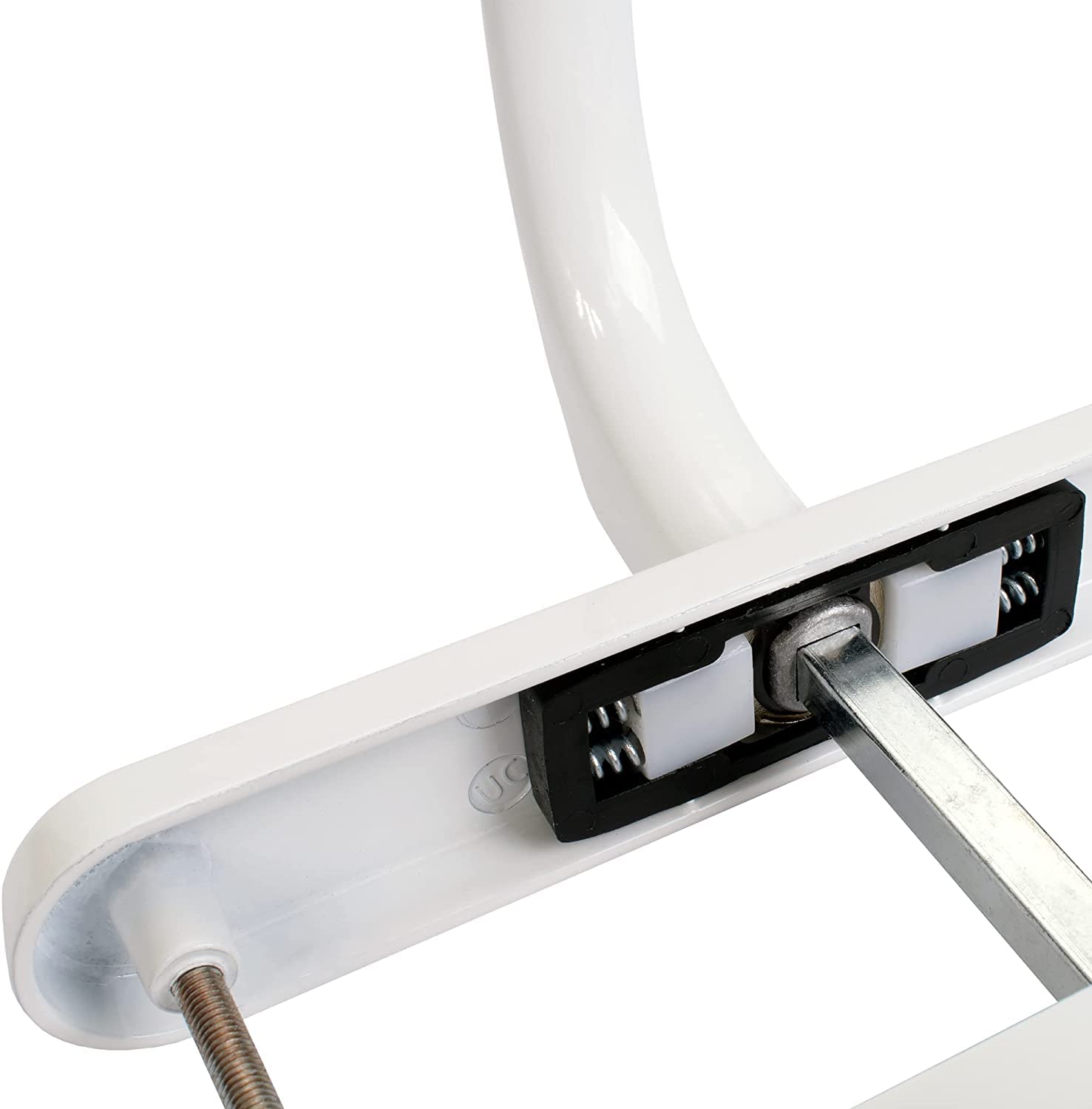

• Sprung handles can be used on left or right handed doors
• 211 millimetres between centre to centre of screw hole fixings
• Handle measures 243 millimetres in length, 32 millimetres in width
• Set includes 1 x internal and 1 x external handle
• Supplied with screws and 8 millimetre diameter spindle to suit 60-70 millimetres thick doors

Product Description

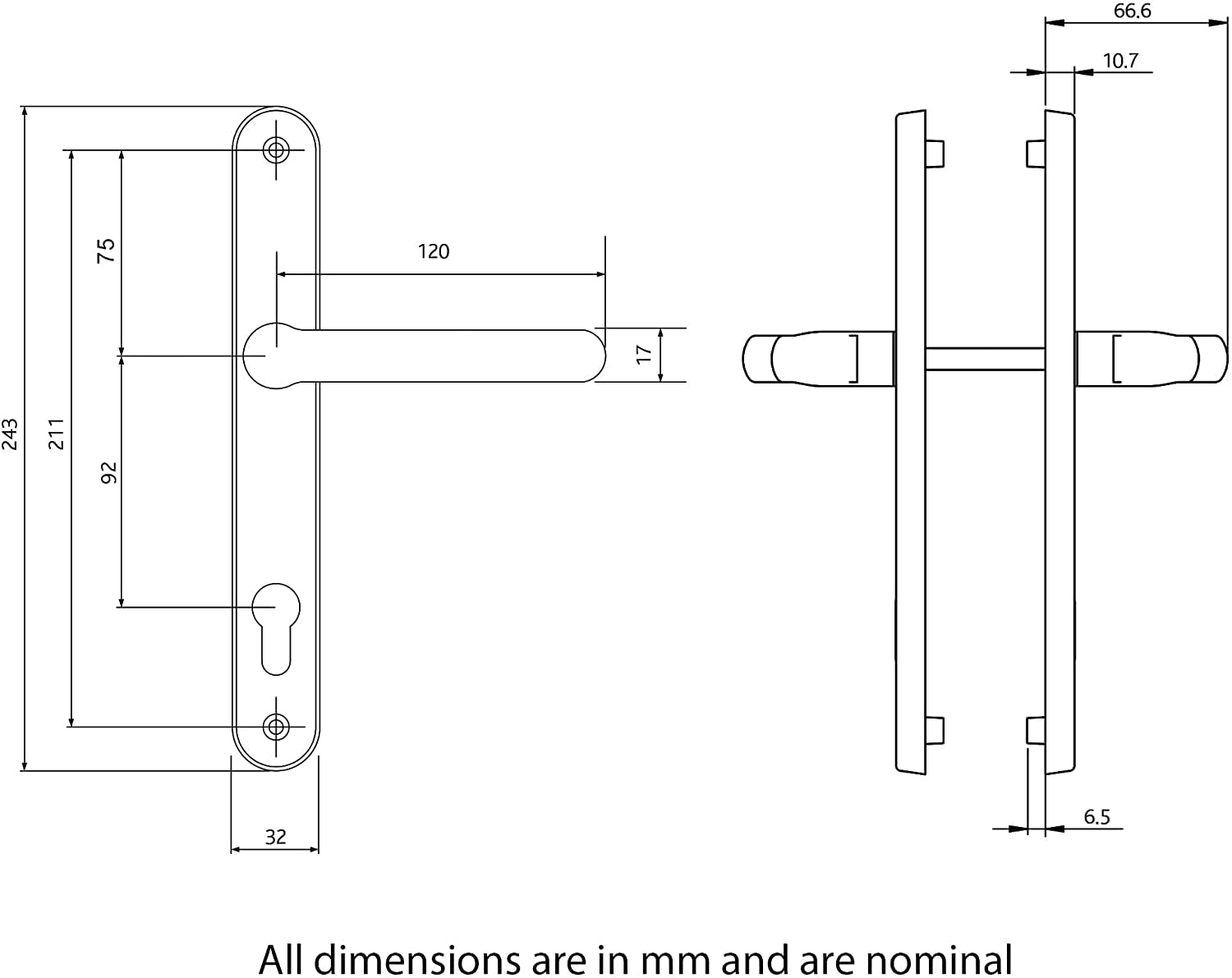

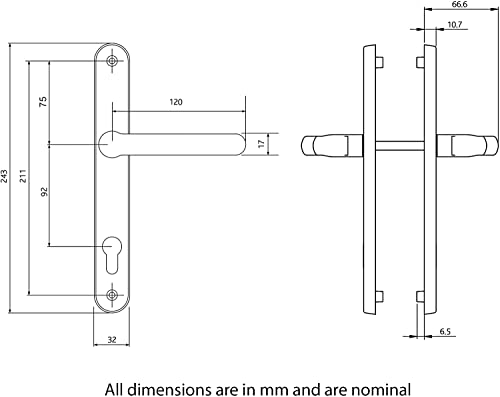

The Fab & Fix Balmoral lever/lever door handle set comes with a high quality finish that is made to endure giving you years of use. The sprung levers are fixed to the backplate and by design the handles are fully reversible fitting left or right hung doors. Fixing lugs are supplied on both backplates for a secure fit. Supplied with fixing screws, 8 millimetre diameter spindle, fitted return springs. To suit door thickness from 60 to 70 millimetres thick. This handle is suitable for uPVC type doors requiring the lift-to-lock motion to engage the multi-point locks up the side of the door. Features: Handle levers are fully reversible by design fitting left or right hung doors, Sprung version as standard, Supplied as a pair complete with spindle and fixing screws. What's in the pack? 1 x Set of Fab & Fix Balmoral 92PZ Lever Lever door handles, 1 x spindle, 1 x packet fixing screws. Dimensions: PZ Centres: 92mm (Centre of spindle to centre of cylinder barrel). Distance between screw hole centres: 211 millimetres, backplate width: 32 millimetres, backplate length: 243 millimetres, lever length: 120 millimetres, spindle Size: 8 millimetres in diameter. For doors from 60 to 70 millimetres thick. What measurements should I check before ordering a handle set? The most important measurements are the distance between screw holes centre to centre (this handle measures 211 millimetres) and the distance from the centre of the handle spindle to the centre of the barrel lock circle (this handle measures 92 millimetres). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference. Important please check the critical measurements in the diagram in the image gallery before ordering.
