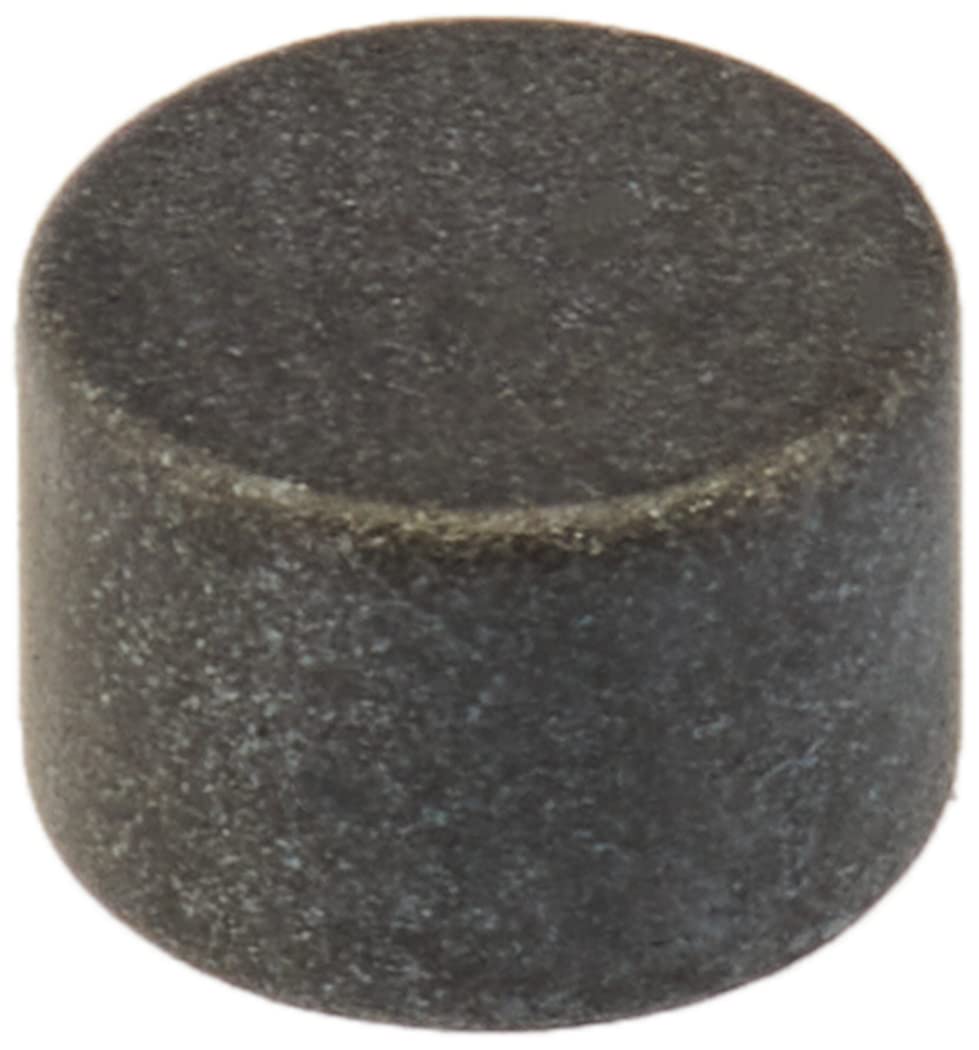

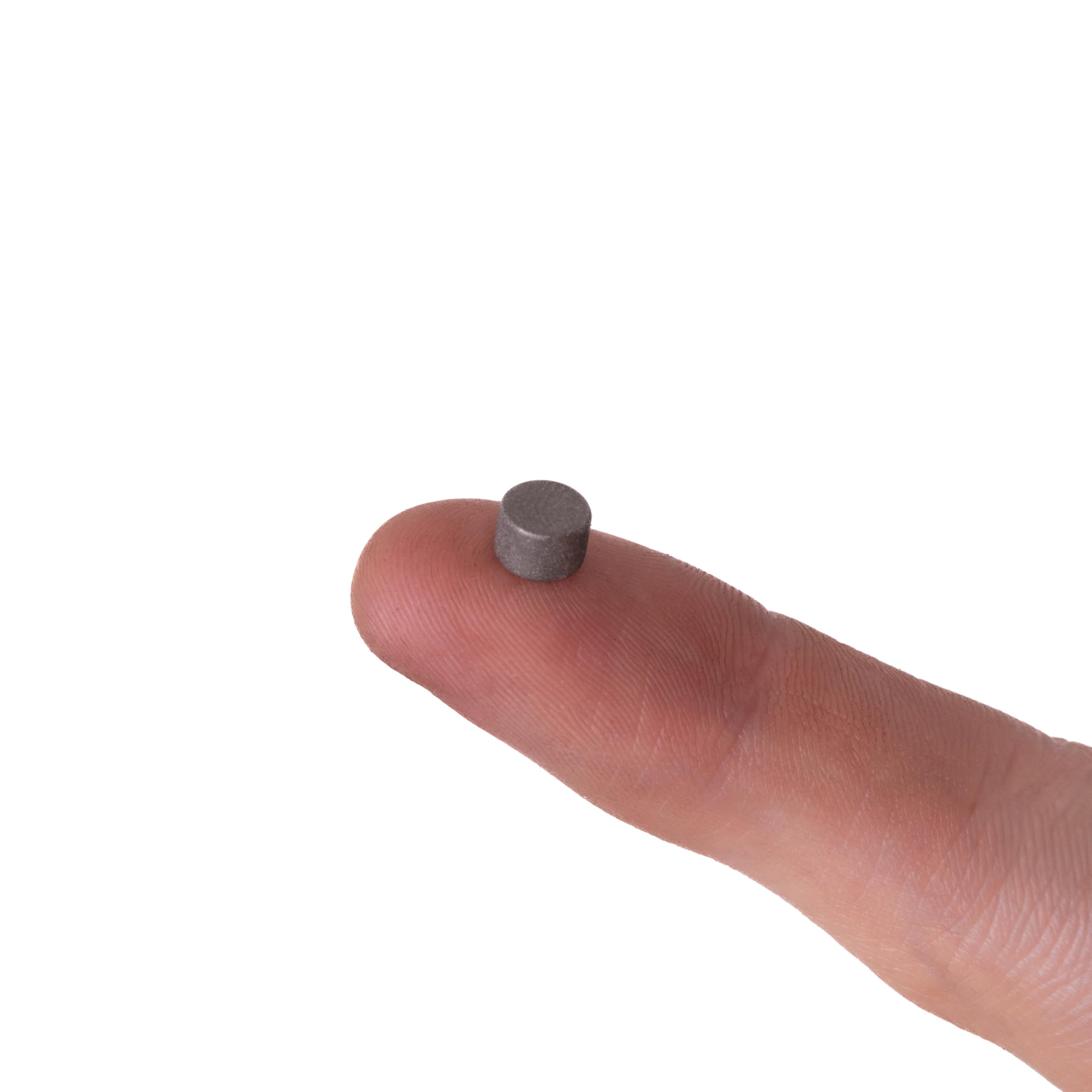

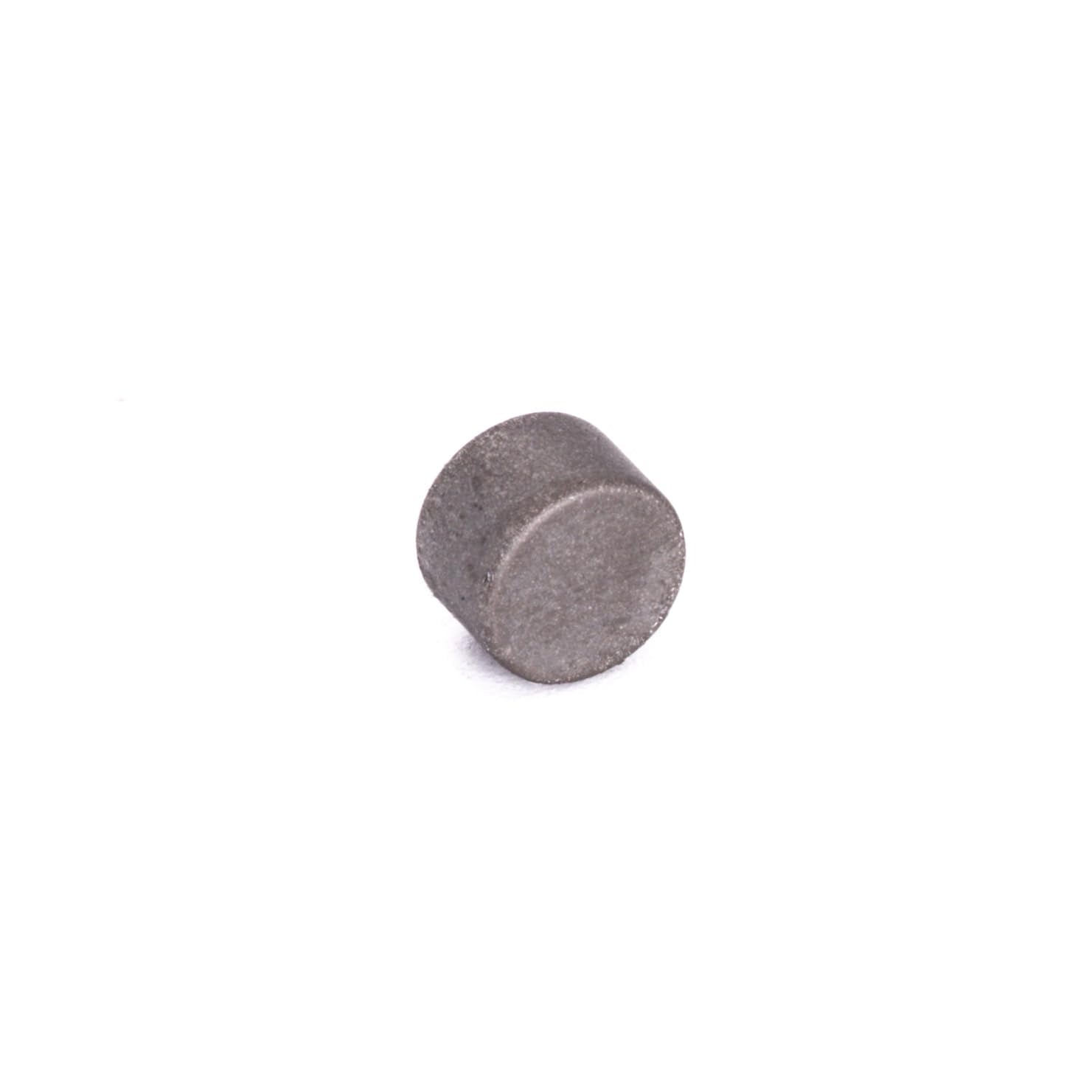

FIRST4MAGNETS Magnet Expert® 6mm dia x 4mm thick Diametrically Magnetised Magnet - 0.3kg Pull (High Temp) (Pack of 4)

Product Highlights

• first4magnets high grade Sm2Co17 samarium cobalt magnet
• Each magnet's north and south pole are on opposite curved sides
• Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth and clean finish
• Supplied in first4magnets packaging with applicable warning label
• first4magnets health & safety data sheet included with order

Product Description

Product Description

Pack of 4

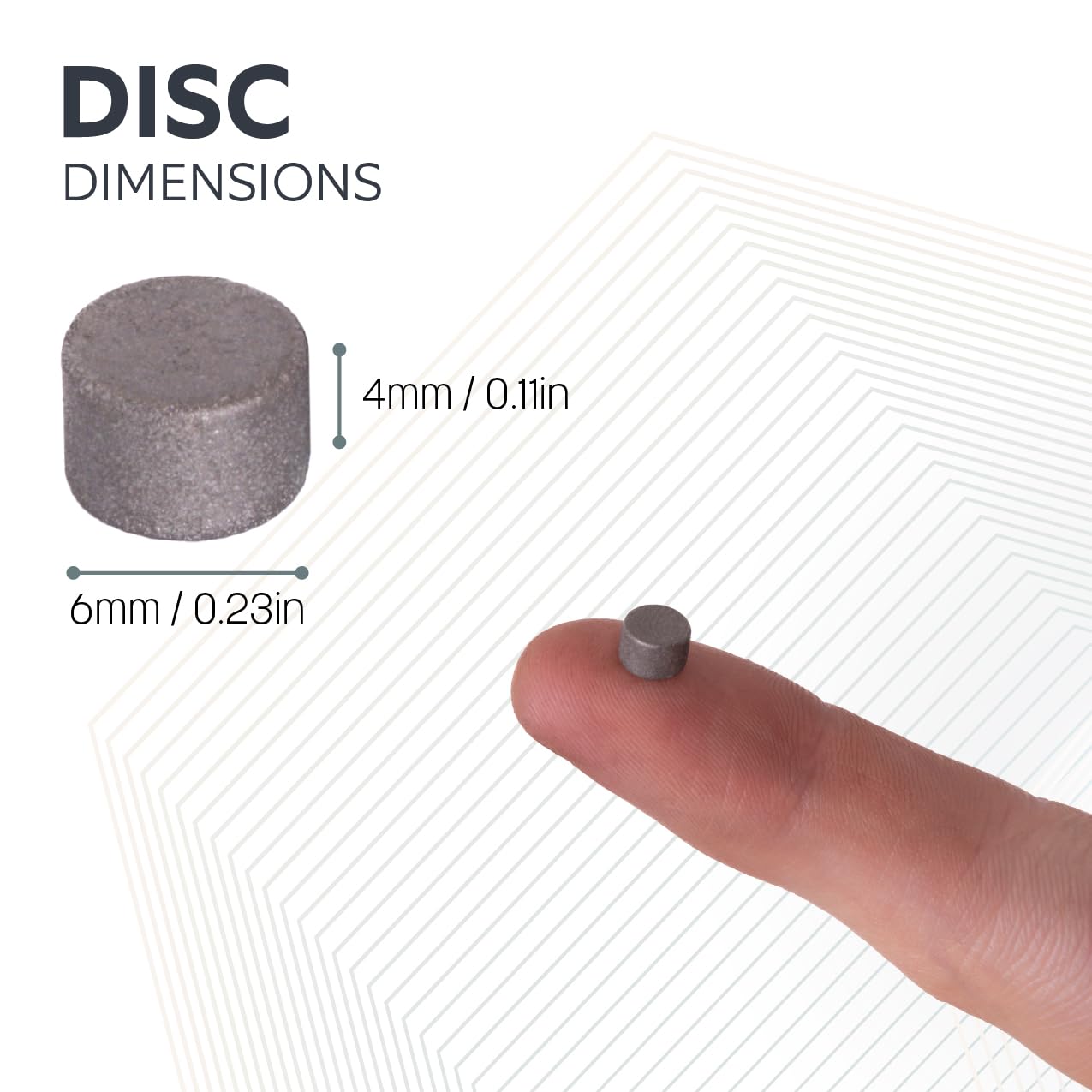

6mm diameter x 4mm thick

+/-0.1mm tolerance

Each magnet's north and south pole are on opposite 6mm diameter faces

Each magnet can support a steel weight of up to 0.3kg vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness

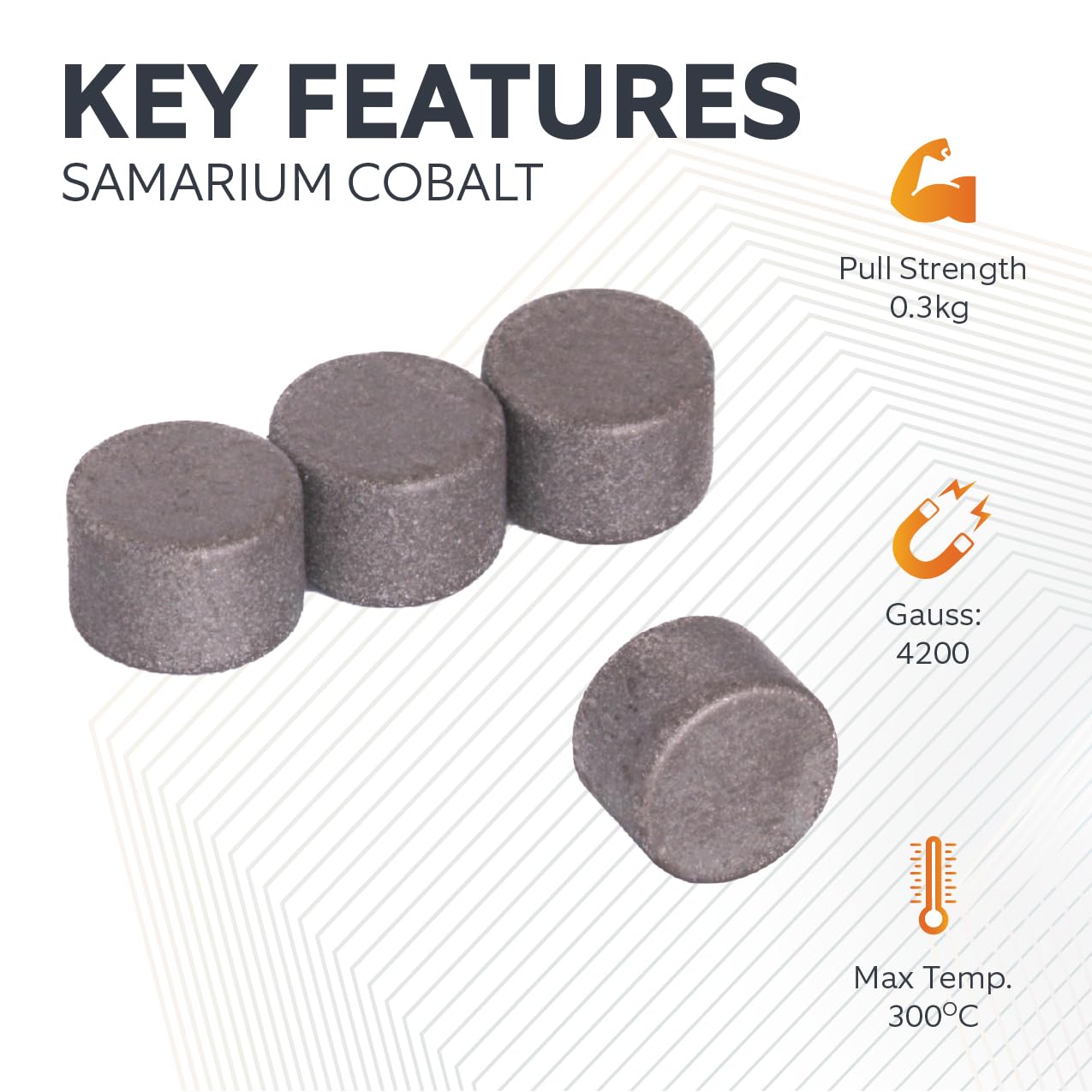

300oC Maximum operating temperature

Resistant to demagnetisation and corrosion without any extra coating

Samarium cobalt is a type of rare-earth magnet that has the ability to withstand and operate in high temperatures, however they are not as powerful as super-strong Neodymium magnets. Because of their high maximum operating temperature they are commonly used in applications such as motors and electric motors, turbo machinery and sensors. Unusually, diametrically magnetised magnets are not designed to hold the maximum possible weight for the size of the magnet but instead are used to provide rotational movement. A diametrically magnetised magnet is magnetised across its diameter so that the north pole in on one curved side and the south pole is on the opposite curved side. Within motors, diametrically magnetised magnets are commonly used on the end of shafts to provide drive. They can also be used to produce a magnetic rack and pinion system by using a line of north and south in alternating polarities. It is also possible to use diametrically magnetised magnets for reed switch applications.

Set Contains:

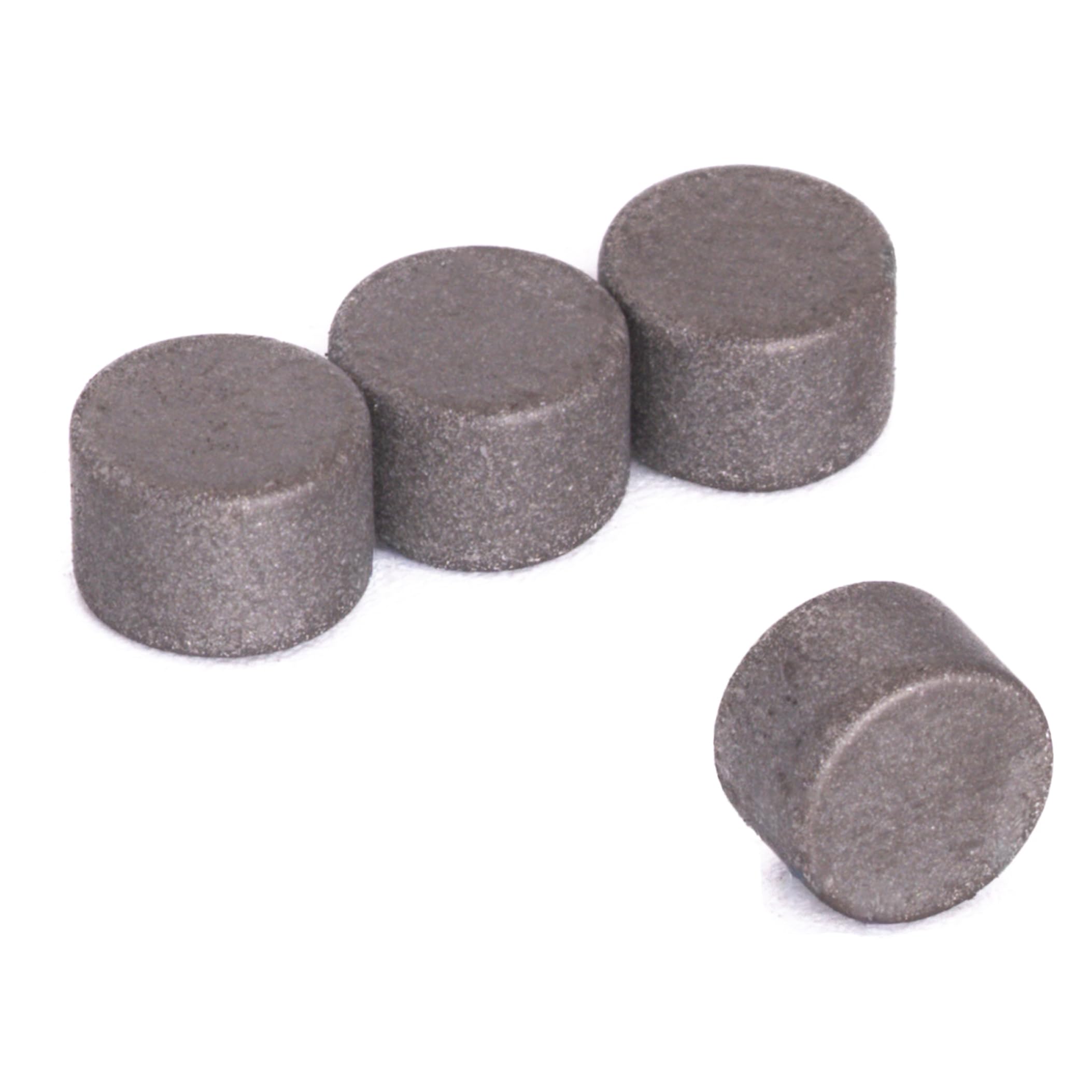

4 x 6mm dia x 4mm thick magnet(s)
