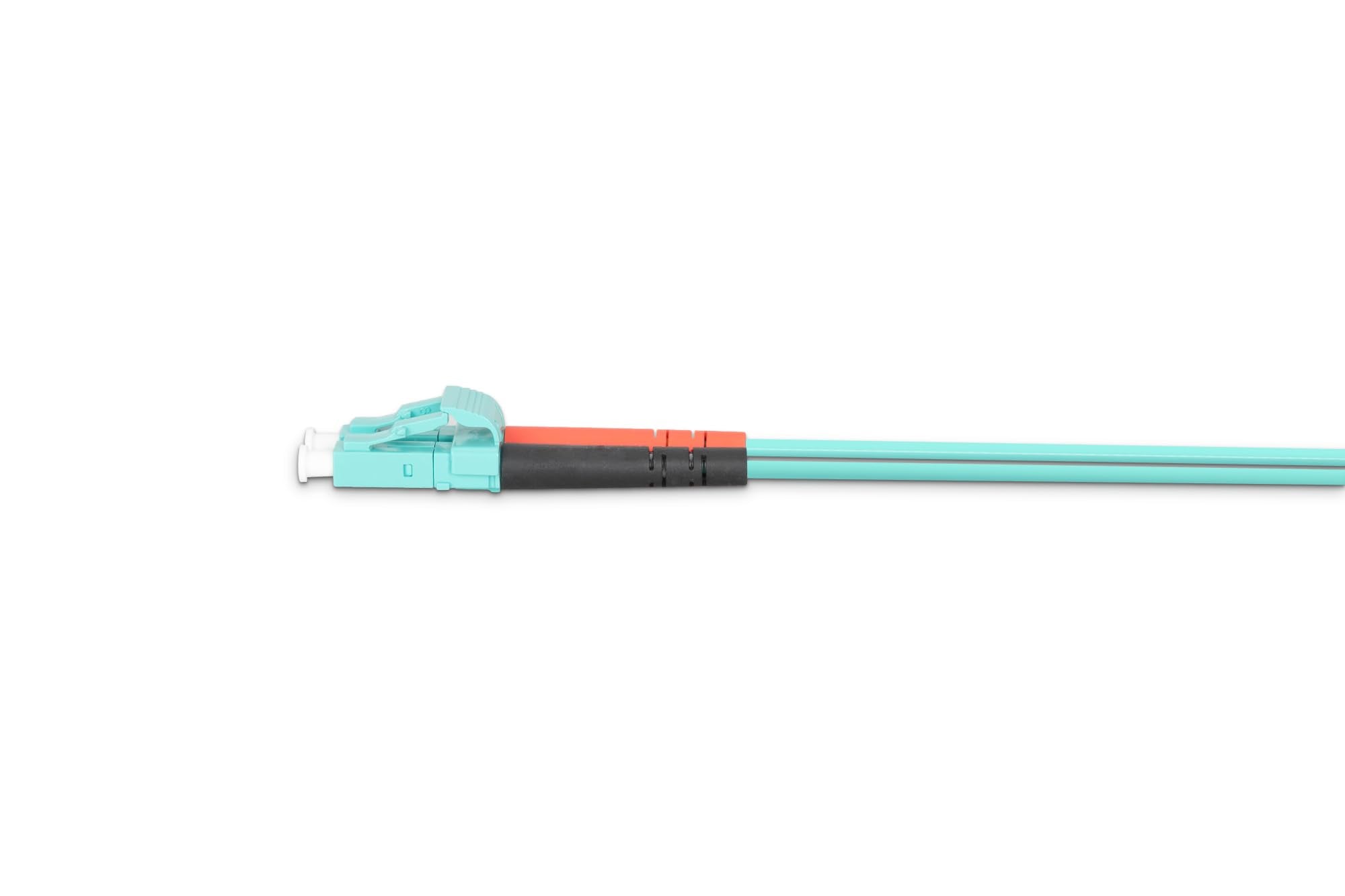

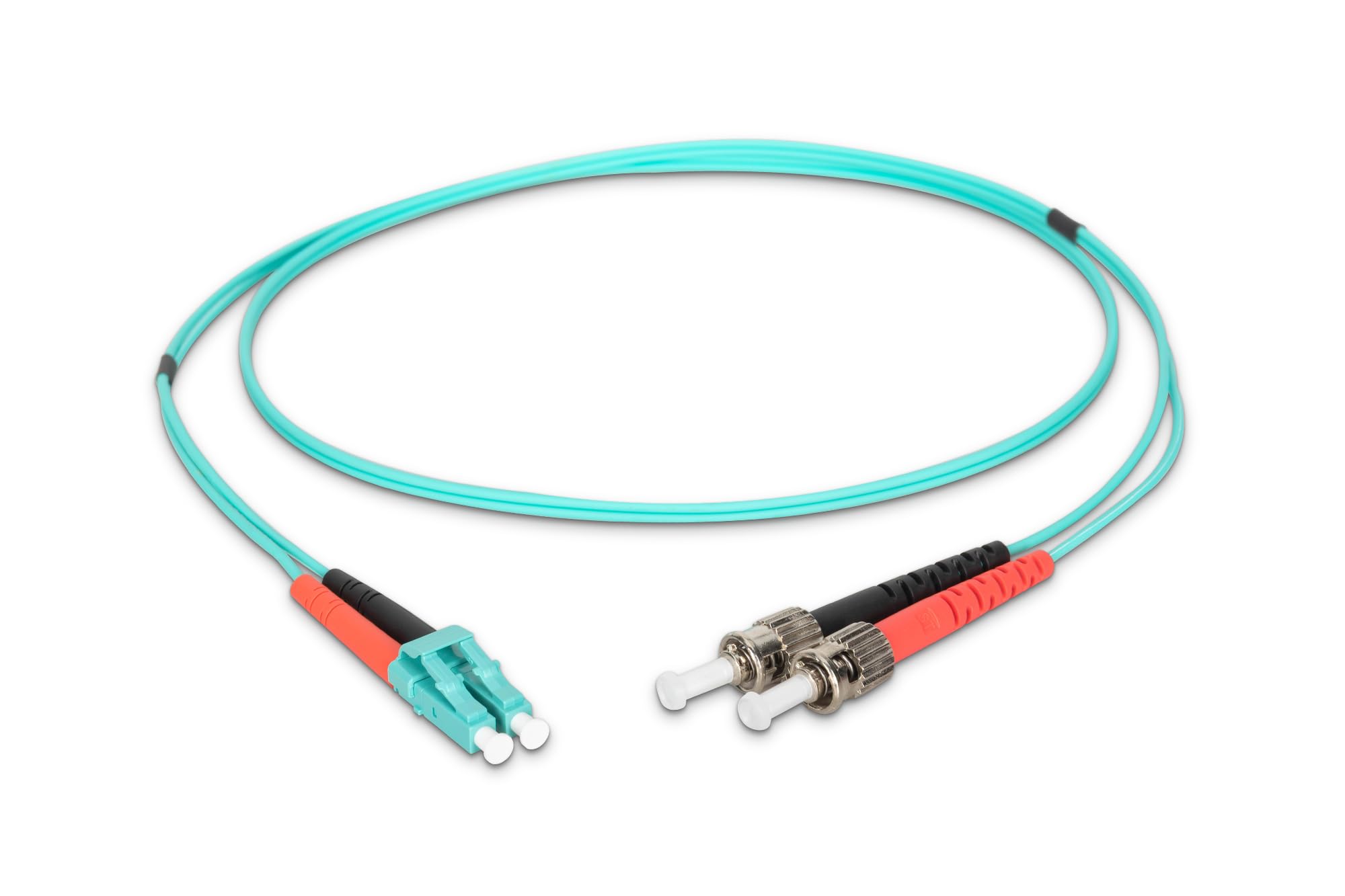

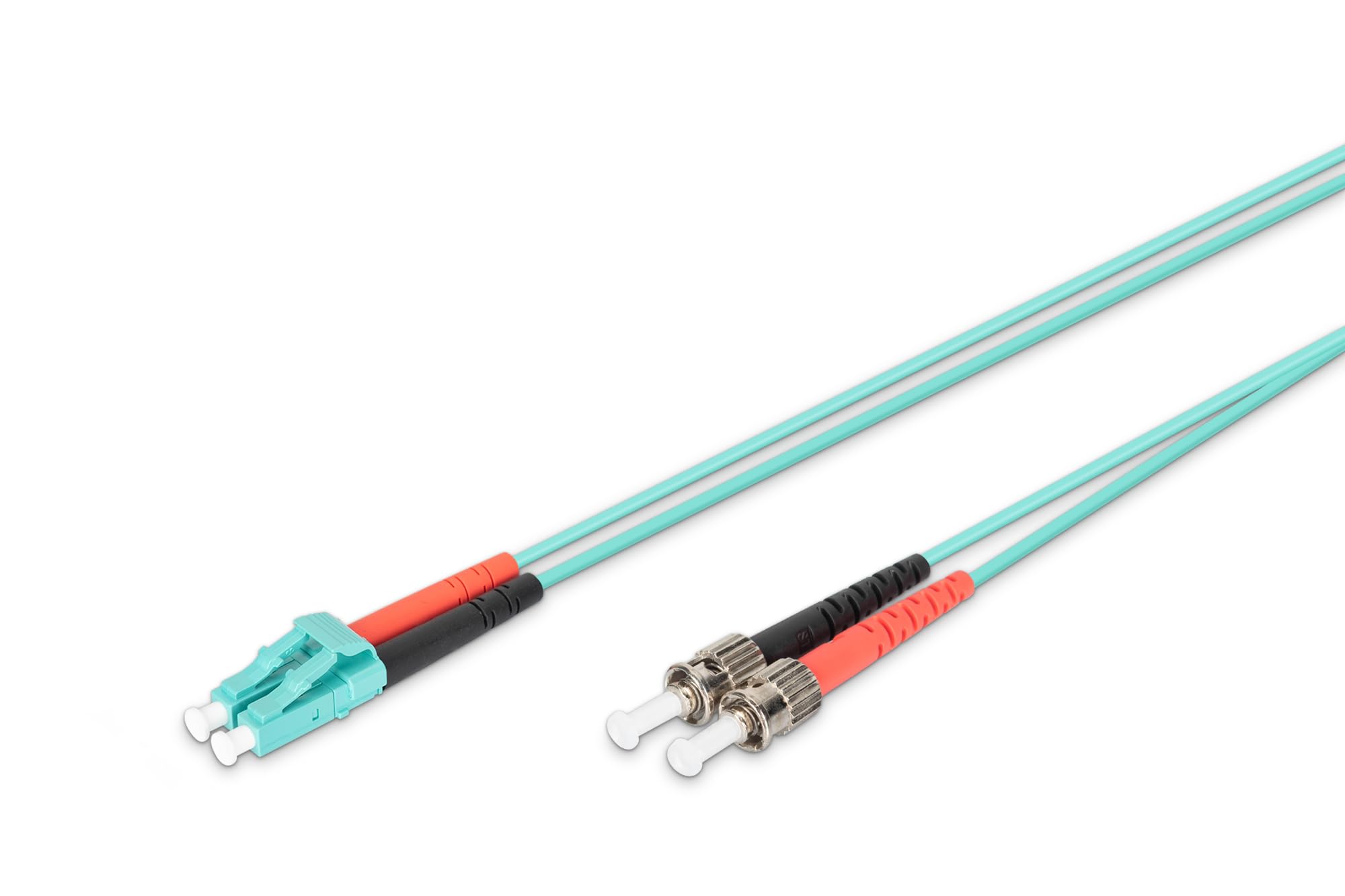

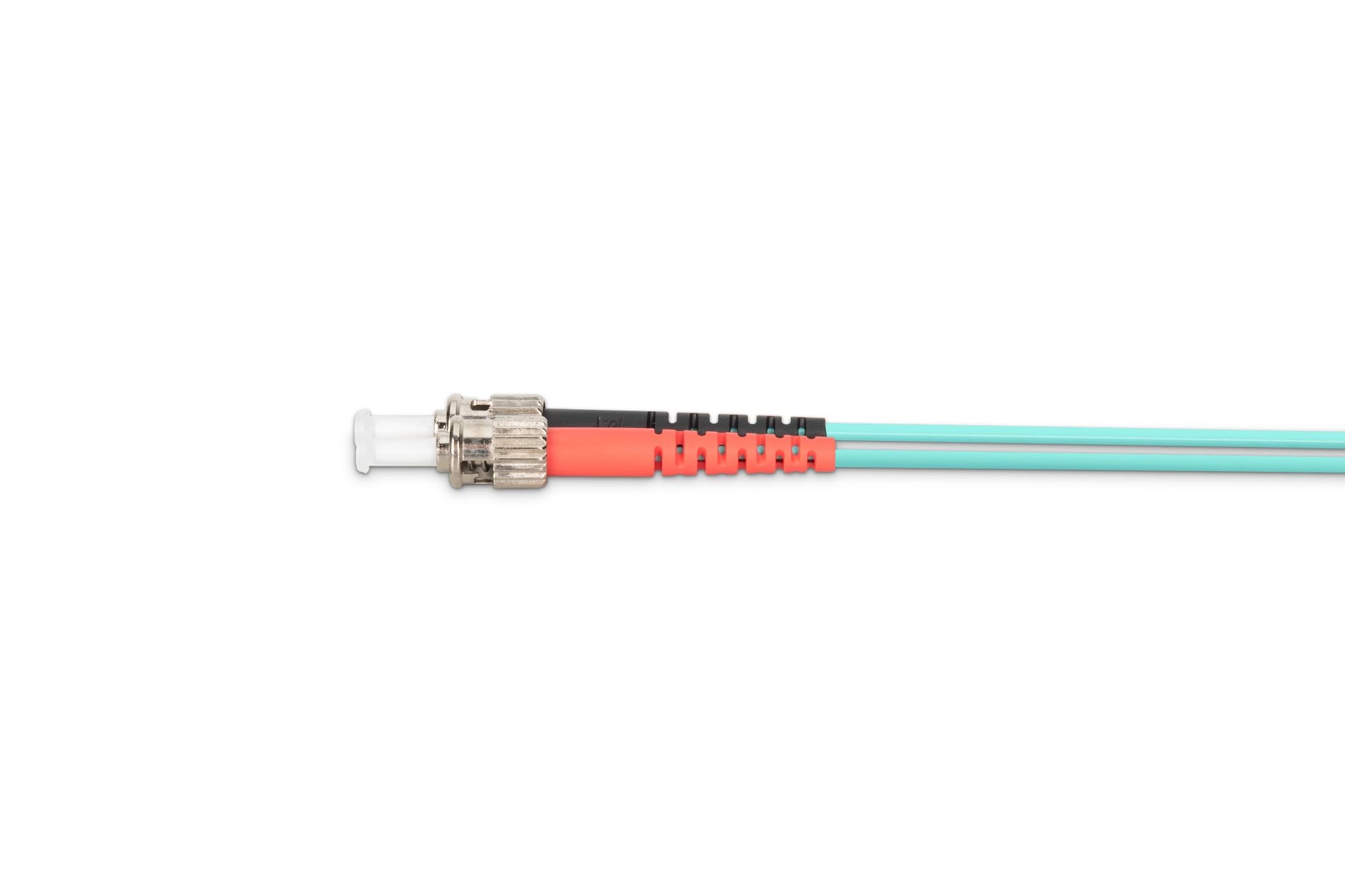

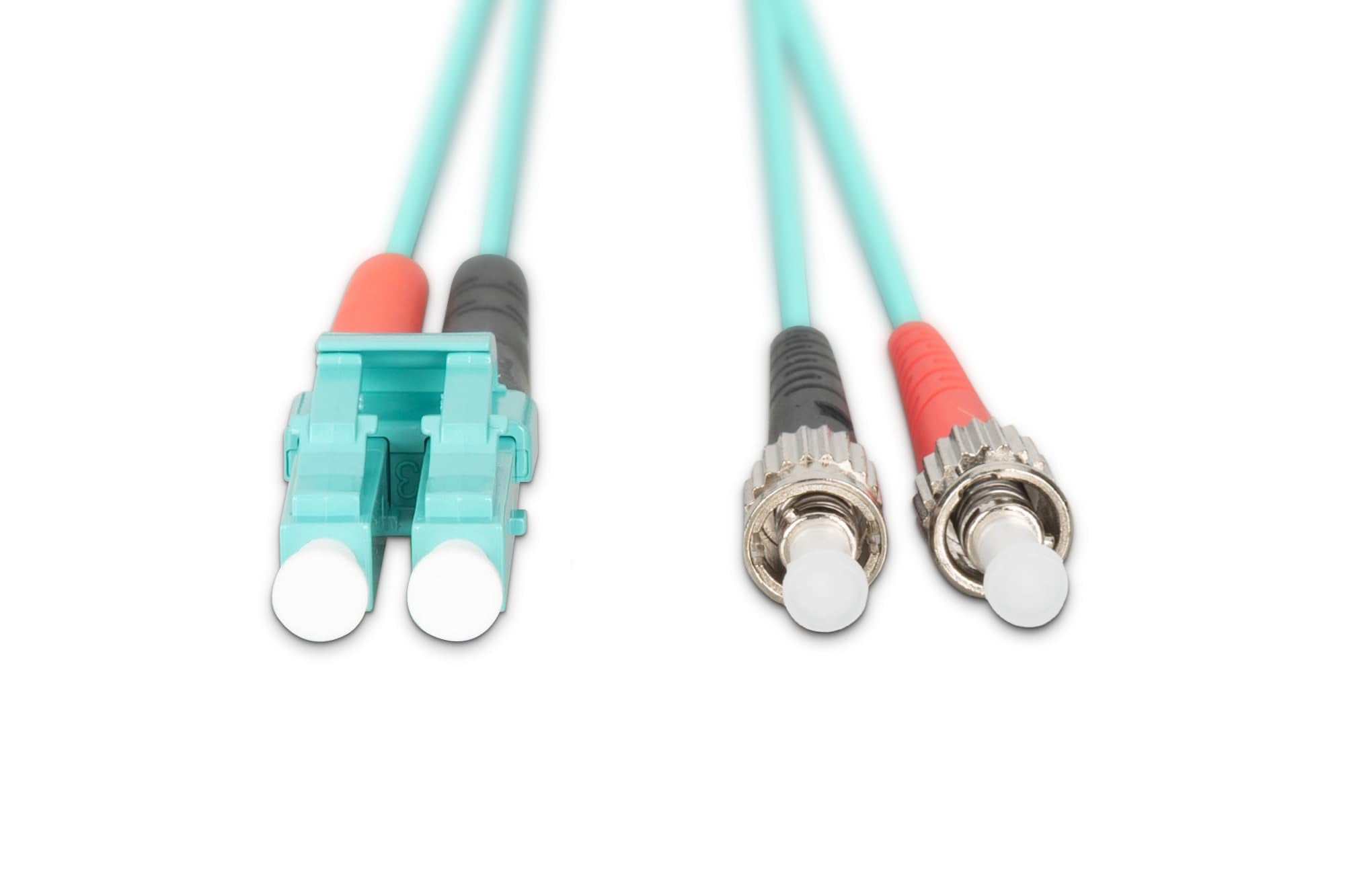

FO patch cord, duplex, LC to ST MM OM3 50/125 µ, 1 m

Product Highlights

• The fiber optic network cables from DIGITUS are available in all common fiber cl and connector combinations - each cable is packed individually and including a measurement protocol.
• Each patch cable contains a fiber for the forward and backward channel as well as plugs with ceramic ferrule and two-color anti-kink sleeves for unambiguous fiber identification.
• Ethernet LAN cables are available with LC, SC or ST connectors as standard - no adapters are required due to the different connector combinations.
• Bifiber optical data links of the OM3 category achieve bandwidths of up to 10 Gigabits per second if the total line length does not exceed 100 meters.
• To achieve the full bandwidth, all components of the overall line (SFP modules, switches, ...) must support the bandwidth and be installed in a technically flawless manner.

Product Description

DIGITUS OM3 Fibre Optic Patch Cable – LSZH – Duplex Multimode 50/125µ – 10 GBit/s – Turquoise

The fiber optic patch cables are available in various fiber classes, from OS2 to OM1 to OM5, and connector combinations to meet any requirements of a pioneering IT infrastructure. Each cable is individually packed in a polybag and equipped with a test report. Optical cables from DIGITUS guarantee the best performance characteristics in different application scenarios, such as telecommunications technology, network cabling in server rooms and data centres, sensor technology or in industrial environments.

Features:

The plugs are made with ceramic ferrule.

Each cable is individually packaged with an individual measurement protocol.

By default, the fiber optic cables are available with LC, SC or ST connectors.

Technical details:

Cable Type: Duplex

Halogen-free according to EN 50267-2-3: yes (LSZH = low smoke zero halogen).

Flame retardant according to IEC/EN 60332-1-2: yes.

Cable diameter: 3 mm.

Fibre type: multi-mode 50/125µ.

Fibre category: OM3.

Number of fibres: 2.

APC version: no.

Coat colour: turquoise

Kink protection sleeve: attached

Insertion loss: ≤ 0.30 dB.

Return loss: ≥ 30 dB (UPC).

Storage & Operating Temperature Range: -40°C to +85°C

Length tolerance ≤ 10 m: +100 mm/-0 mm.

Length tolerance > 11 m: +50 mm/-0 mm.
