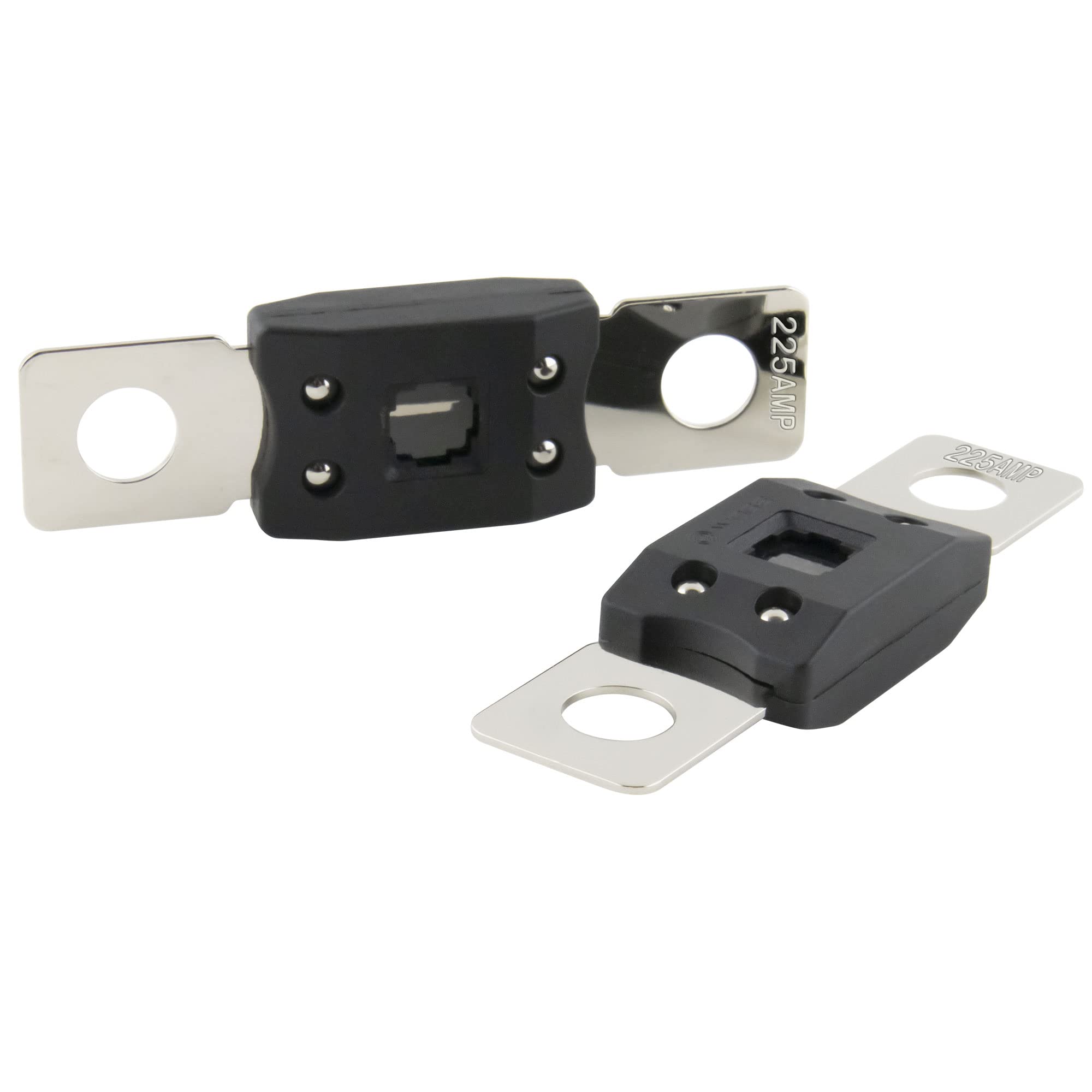

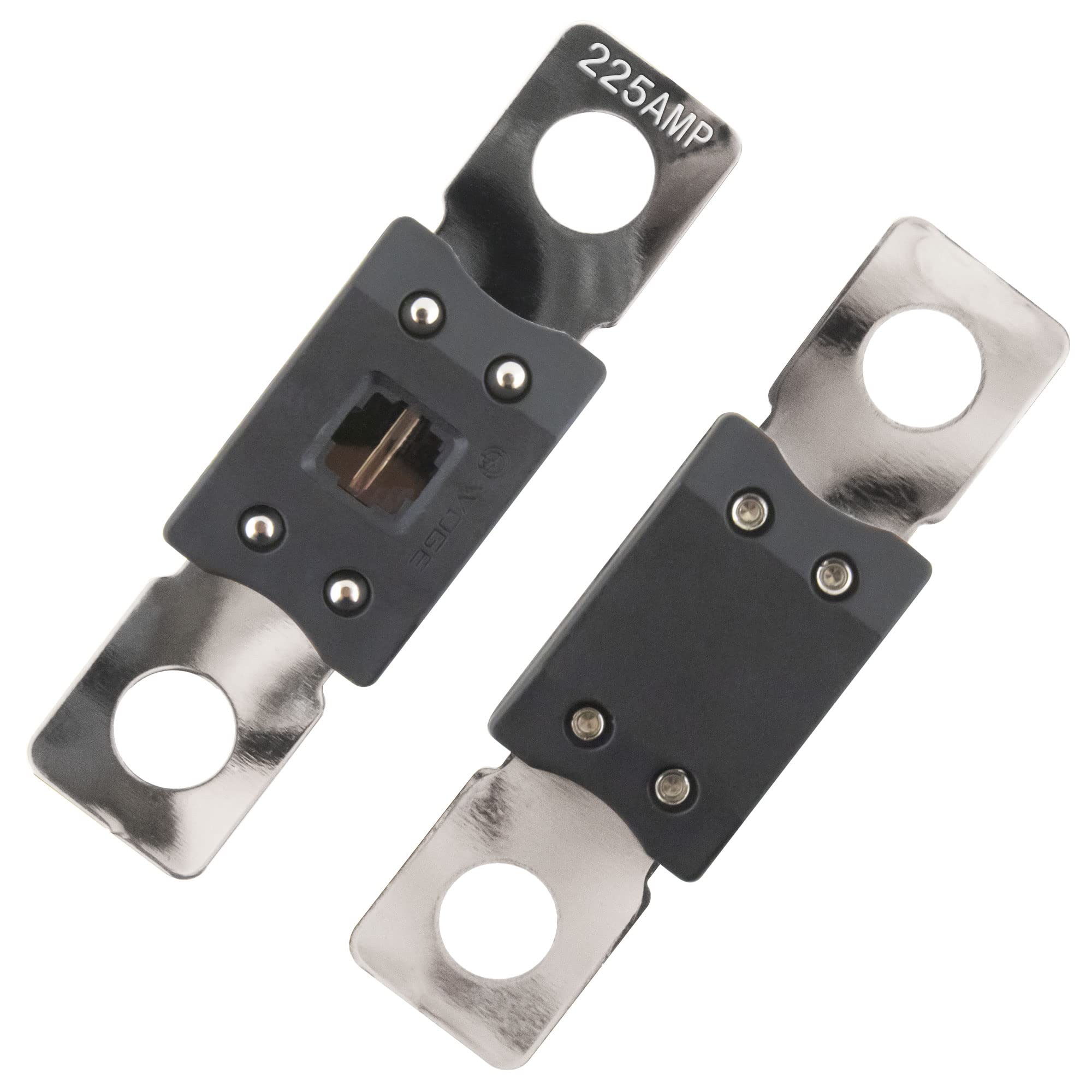

SeKi Mega Screw Fuse High Current Fuse 225A Amp up to 58V DC - Pack of 2

Product Highlights

• SeKi Mega High Current Fuse / Strip Fuse M8 according to ISO 8820-5; Current 225A Ampere
• High current screw fuse for cars, trucks, construction vehicles, agricultural machinery, buses and caravans
• DC fuse up to 58 V DC - protection feature: overload, short circuit

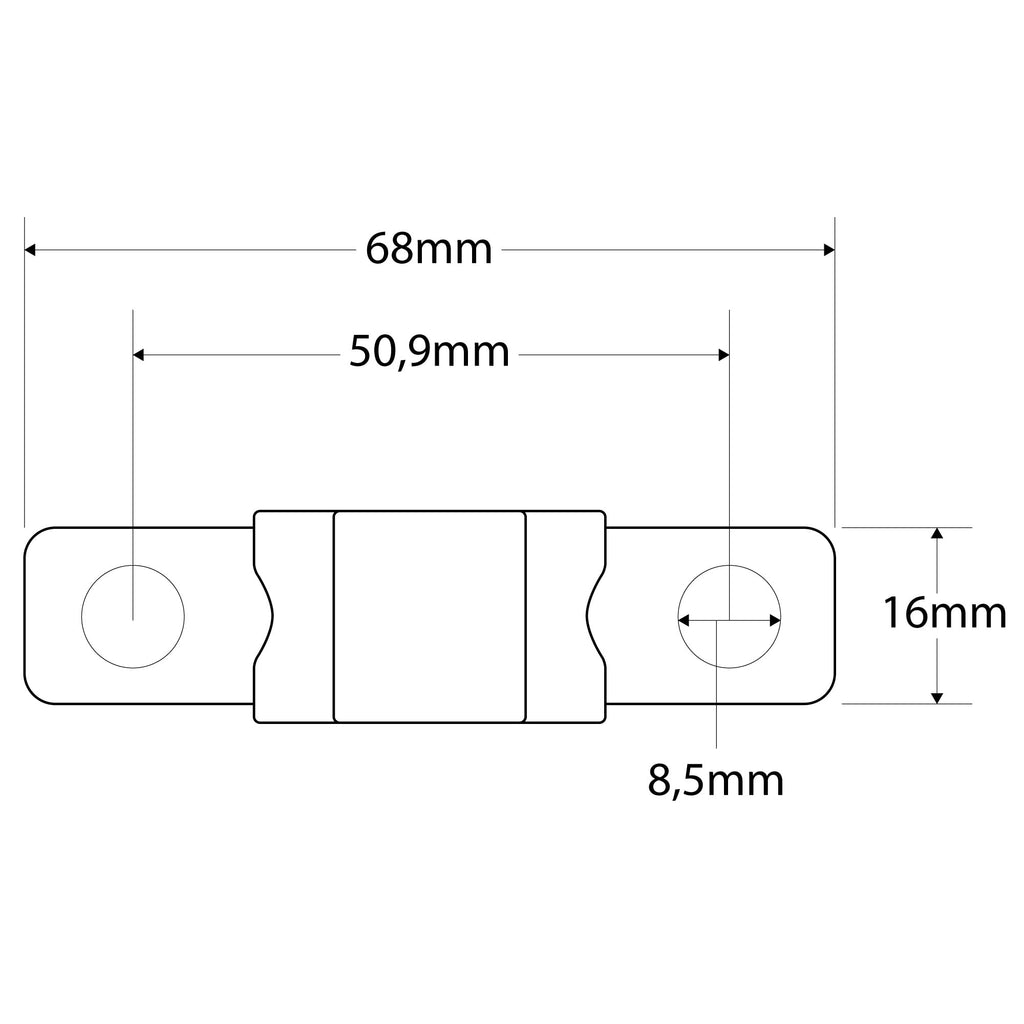

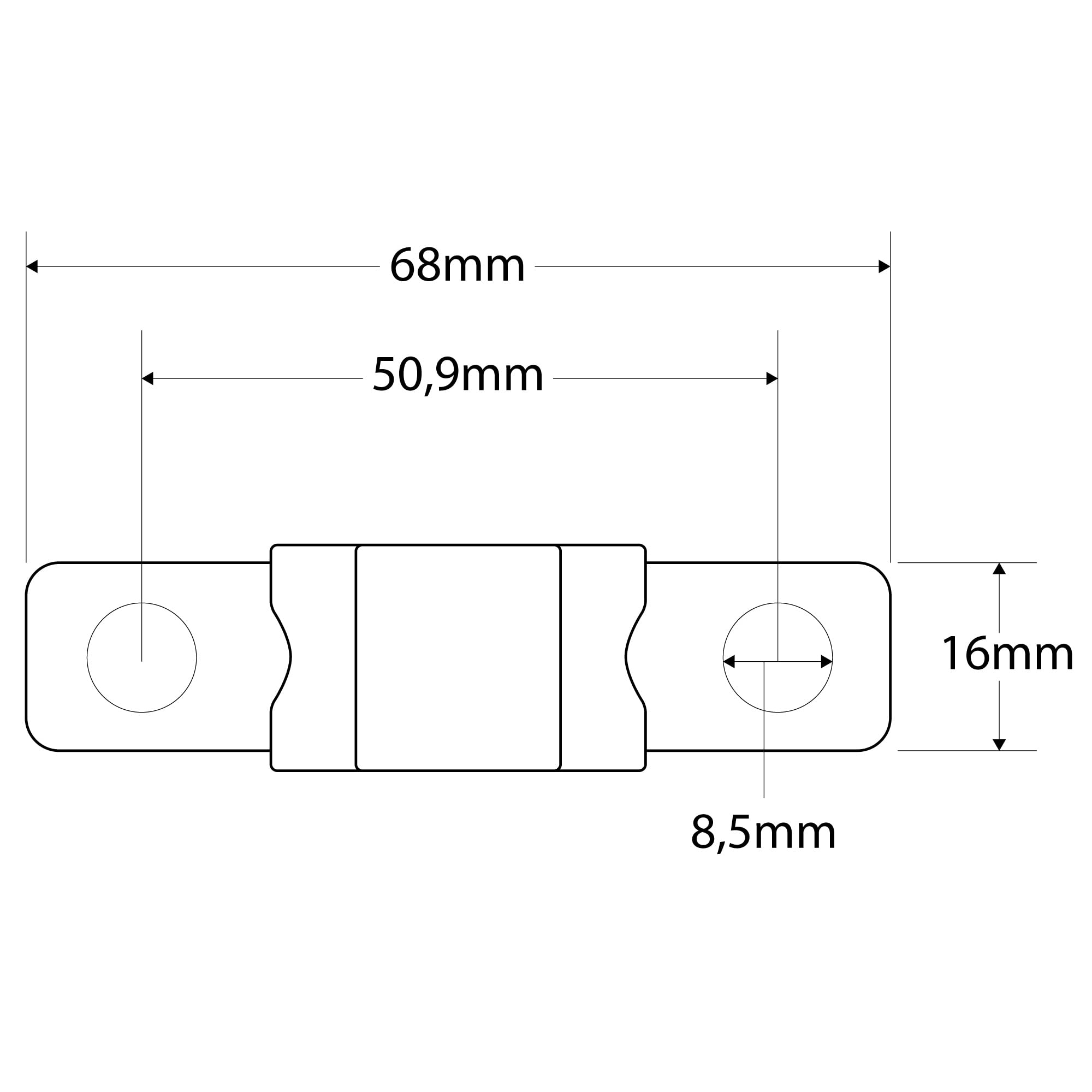

• Dimensions: 68.85 x 19.2 x 10 mm; hole spacing: 50.8 mm; hole diameter: approx. 8.5 mm (M8)
• Box contents: 2 pieces mega high current fuses, 225 A amp

Product Description

High current fuse / strip fuse according to ISO 8820-5 - copper alloy with integrated tin-plated heat sink - riveted connection for a stable construction. Suitable for use as a fuse on the battery cable of voltage converters and inverters or even charge controllers with high charging currents. Technical data. :Type:M,Mega high current fuse. Dimensions: 68.85 x 19.2 x 10 mm. Boron hole spacing: 50.8 mm. Voltage: up to 58 V. Current: 225 A. Temperature range: -40 °C to +125 °C. Hole diameter: approx. 8.5 mm
